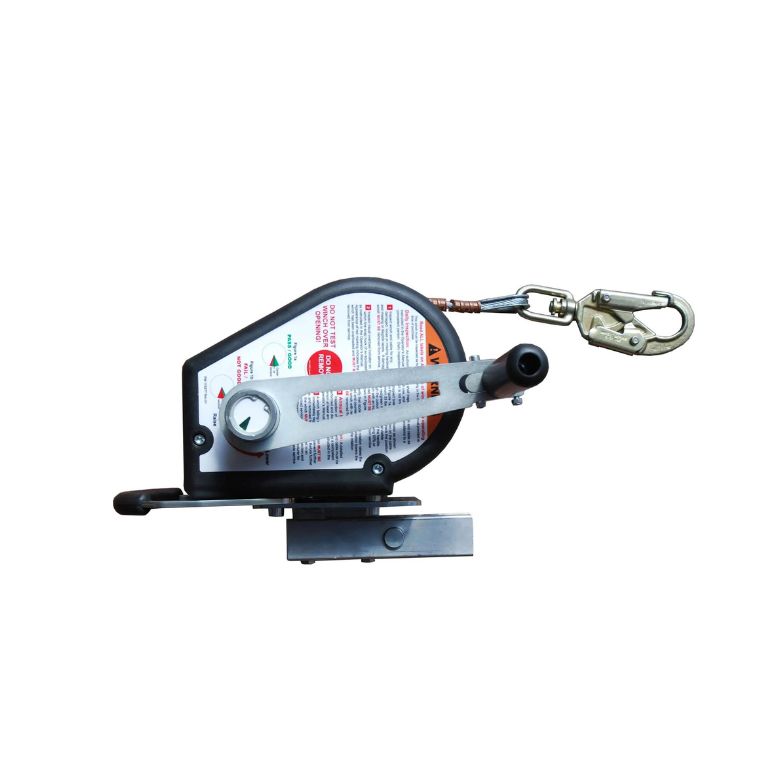

ABTECH – 30M Personnel WINCH

The ABTECH 30m Personnel Winch is a versatile and dependable lifting solution designed for a wide range of confined space access, work positioning, rescue, and fall protection scenarios. Built for both personnel and material handling (within rated load limits), the 30m Personnel Winch offers smooth operation and enhanced safety for vertical access tasks.

With a mechanical advantage of 11:1, it delivers efficient lifting with reduced effort. The average cranking force is just 30lbs (133N), allowing for controlled movement even under load. It also features a secondary braking system with a maximum stopping distance of 24” (610mm), ensuring a quick and secure halt in the event of sudden movement or failure.

Certified to BS EN 795 and BS EN 1496 standards, the 30m Personnel Winch supports a maximum user weight of 140kg in a single reeved setup, and up to 280kg when double reeved, providing flexibility depending on operational requirements.

Whether you’re accessing a confined space, conducting a rescue, or securing a work-at-height task, the ABTECH 30m Personnel Winch delivers dependable performance with built-in safety and user-friendly handling.

Key Features:

• Length: 30 metres
• Conformance: BS EN 795, BS EN 1496
• Mechanical Advantage: 11:1
• Average Cranking Force: 30lbs (133N)
• Secondary Brake Stopping Distance: Max 24” (610mm)
• Max User Weight (Single Reeved): 140kg
• Max User Weight (Double Reeved): 280kg
