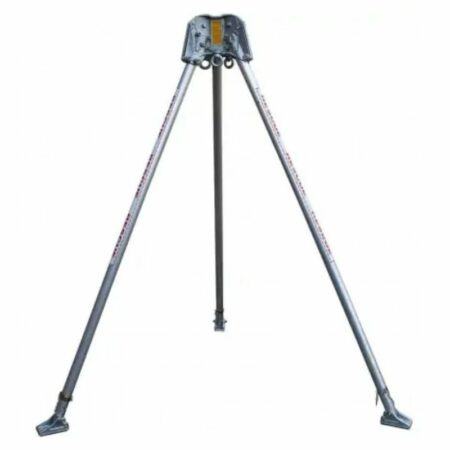

ABTECH – RT3 TWO PERSON RESCUE TRIPOD
The Abtech RT3 Tripod is a robust, portable two-person rescue tripod with six anchor points, 2.6m height, and 250kg capacity, perfect for demanding rescues where safety and stability matter most. Fill in the form below to get yours!
Need to talk to us?
Have questions or need expert advice? Our team is ready to assist you. Chat with a knowledgeable expert in real-time and get the information you need.
ABTECH – RT3 TWO PERSON RESCUE TRIPOD
Crafted from industrial-grade aluminium alloy, the ABTECH RT3 tripod is a robust and reliable solution for two-person rescue operations. Despite its solid build, it remains relatively lightweight at 21.5kg, making it portable and practical for field use. Designed with simplicity in mind, the RT3 is easy to set up, operate, and maintain, with just an annual service recommended.
Each of the telescopic legs can be adjusted individually, offering flexibility on uneven ground and ensuring a secure, stable setup. The tripod extends to a maximum height of 2.6m with a base width of 2m, allowing a stretchered casualty to be lifted vertically and completely clear of an entry point. Once the job is complete, the legs can be collapsed to a closed height of 2.15m, and the unit can be packed away in an optional padded carry bag for easy transport.
With three overhead pulleys and three fixed eyebolts, the RT3 offers six anchor points for up to 11mm rope. This configuration supports the use of Mechanical Prusik systems, automatic belay devices, and lanyards for added stability, with the option to pin the tripod feet to the ground for extra security.
Certified to EN795 Type B, the RT3 supports a Safe Working Load (SWL) of up to 250kg with a 6:1 safety factor, making it ideal for a range of confined space entry, rescue, and work positioning scenarios. The tripod can also accommodate additional gear such as medical kits, communication lines, tools, and lighting systems.
Key Features:
- Designed for two-person rescue operations
- Safe Working Load: 250kg (6:1 safety factor)
- Max Height: 2.6m
- Closed Height: 2.15m
- Max Base Width: 2.0m | Min Base Width: 1.3m
- Six anchor points with 11mm rope compatibility
- Certified to EN795 Type B
- Optional carry bag available for portability
Resources
Frequently Asked Questions
Can’t find your answer? Get in touch with our team.
The RT3 weighs 21.5kg
No, however, we would suggest that you undertake a Confined Space Course which covers the use and set-up of tripods. Our sister company Citrus Training offers these courses.
First, understand your requirements, such as the work environment, and determine the type of spaces you will work in (e.g., dimensions and access points). Recognising how many people will use the tripod simultaneously and the equipment’s compatibility with other devices is also important. You should also evaluate the weight capacity by determining the maximum load that and tripod needs to support. Additionally, consider the portability and look for features such as foldable legs, lightweight materials and ease of assembly. Our product descriptions provide detailed specifications to help you make the right decision; however, if you are still unsure, speak with our team here for further advice.
